The US$ 65 million repair and renovation of the Honestino Guimarães Bridge (ex-Costa e Silva Bridge) in Brasilia, Brazil, was completed in September 2023. The Penetron System of crystalline concrete waterproofing products was specified to restore and waterproof the bridge's damaged concrete elements.
The Honestino Guimarães Bridge (ex-Costa e Silva Bridge) was designed by Oscar Niemeyer, a famous Brazilian architect best known for his designs of numerous civic buildings in Brasília, a planned city that became Brazil's capital in 1960. In 2015, the Câmara Legislativa of Brasília changed the name of the bridge from “Costa e Silva” (ex-president) to “Honestino Guimarães” (student activist).
The bridge spans Lake Paranoá in Brasília to connect Asa Sul, a central district in Brasília, with the affluent neighborhood of Lago Sul. With a total length of 400 meters (1,320 feet), it has two sections built with reinforced and prestressed concrete and a central span made with a steel structure.
“This bridge has a graceful appearance,” adds Cláudio Neves Ourives, CEO and Managing Partner of Penetron Brazil. “Niemeyer, the architect, remarked that the bridge should touch the lake surface in a way that no foundation would be seen. This decision gives the Honestino Guimarães Bridge a remarkable structural lightness.”
However notable the architectural design, after almost 50 years of service, the Honestino Guimarães Bridge had developed numerous problems: cracks, leaks, and voids in the walls of the concrete structures, deterioration caused by carbonation, and worn steel cables. NOVACAP, the engineering consultant responsible for the renovation work, asked Penetron Brazil for a durable concrete repair solution.
PENECRETE MORTAR, a crystalline waterproofing repair grout, was used to repair the cracks and fill the voids in the concrete elements. PENETRON, a topical crystalline waterproofing material, was applied over the prepared surfaces of the concrete caissons to reduce permeability and increase protection, completing the waterproofing system.
Once applied to the surface of the concrete structure, the active ingredients in PENETRON penetrate deep into the concrete matrix to generate a non-soluble crystalline formation throughout the pores and capillary tracts of the concrete. This crystal formation permanently seals microcracks, pores and capillaries against the penetration of water or liquids from any direction.
“The Penetron System provides concrete with long-term protection from deterioration caused by carbonation, ultimately preventing corrosion of the embedded reinforcing steel, even under the environmental conditions of Lake Paranoá in Brasília,” concludes Cláudio Neves Ourives. “In addition, the continuous self-healing capabilities of the Penetron technology ensures that any hairline cracks in the concrete will seal automatically. No further waterproofing-related maintenance or treatment will be required.”
![Designed by Oscar Niemeyer, a famous Brazilian architect, the timeless structural lightness of the Honestino Guimarães Bridge is visible again after extensive repair work.](/images/opt/images-project_image-Honestino-Guimaraes-Bridge-Brasilia-Brazil-11911ec.jpg)
Renewed after 50 years: Designed by Oscar Niemeyer, a famous Brazilian architect, the timeless structural lightness of the Honestino Guimarães Bridge is visible again after extensive repair work.

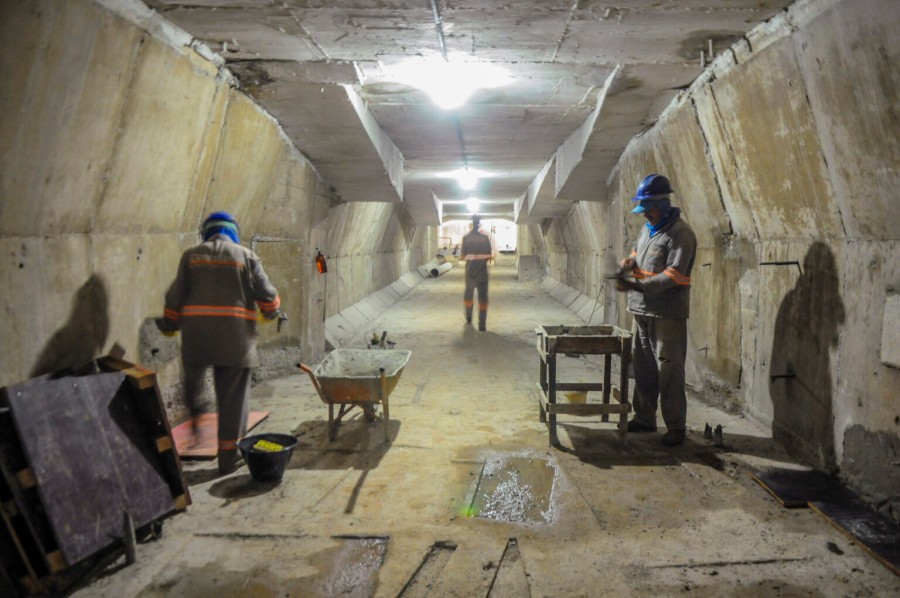

![Inside the bridge’s concrete caissons the cracks, leaks, and voids in the deteriorated concrete are repaired and waterproofed to ensure a durable structure.](/images/opt/images-project_image-Honestino-Guimaraes-Bridge-Brasilia-Brazil-2.jpg)
Applying the Penetron System: Inside the bridge’s concrete caissons the cracks, leaks, and voids in the deteriorated concrete are repaired and waterproofed to ensure a durable structure.
